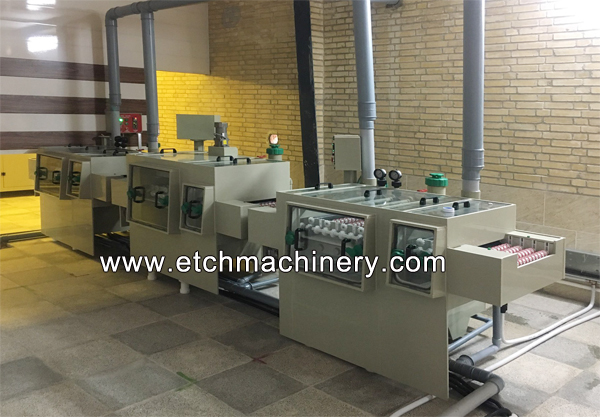

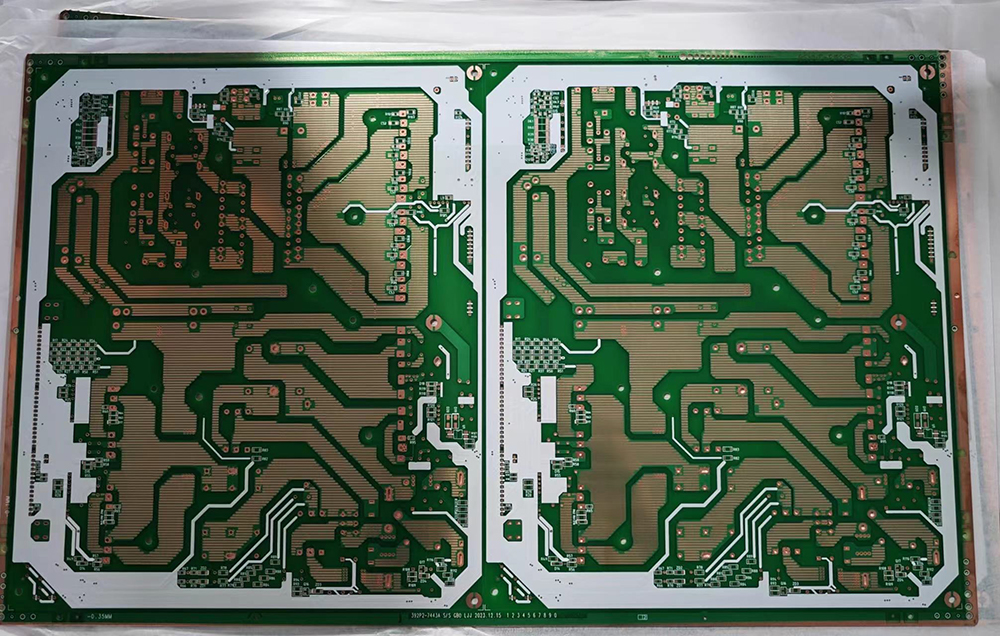

photo chemical Etching Line for PCB


photo chemical Etching Line for PCB

Features: photo chemical Etching Line for PCB for double-sided or multi layer PCB or thin copper etching uses with high precision.

Contact Us Regarding Product

Process flow: Load → Etching1,2 → Etching3,4 → Pressure Washing → City Water Washing→ Checking →Stripping1,2 → Pressure Washing → City Water Washing → Blot Up → Cold & Hot Dry → Unload

Main technical parameter:
Model:GE-SWD9
Power:380V/50HZ/60HZ
Working width:650mm
Working height:850mm (+/50mm adjust)
Min / Max board size:120*80mm / 500*500mm
Etching system:Double Spray with Oscillate system
Workpiece thickness:0.2~3.2mm
Working Temperature:35~55 ℃
Conveyor Speed:0.5～6m/min
Heater/Cooling Pipe :Titanium Pipe
Machine dimension :12500*1700*1850mm
Automatic Control System:
Working Speed Adjust system
Pressure Adjust System
Temperature control System
High temperature (up to 100) resists German PP material

Integrated inline filter with O-ring seal sample ports and easy pump maintenance pressure control
etching machine oscilation system





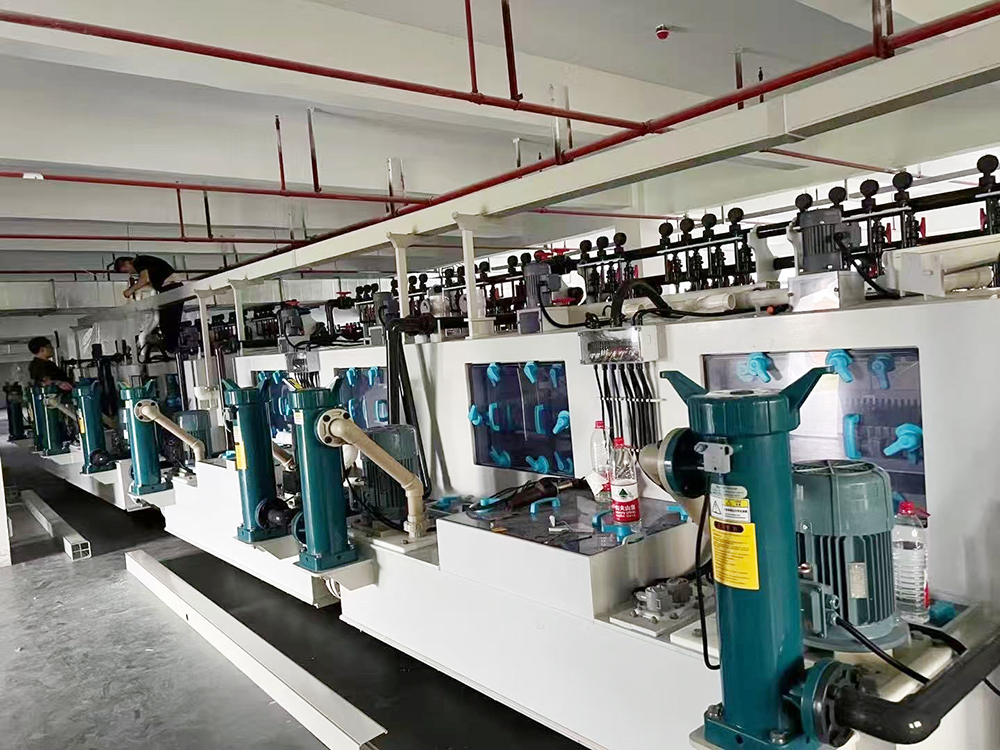

how to make chemical milling ? need to use any machine finish chemical etching ? show you the factory for whole process




other related etching machine

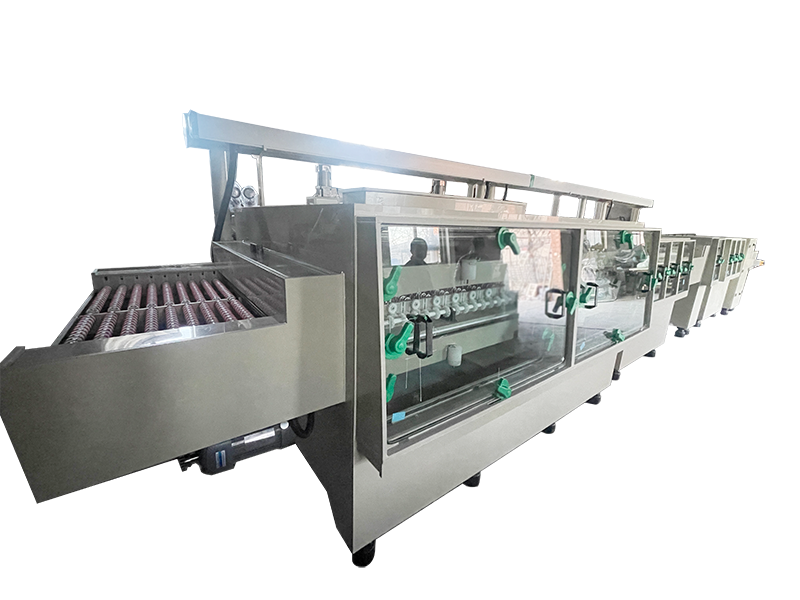

Aluminium PCB FR4 Etching Machine

Aluminium PCB FR4 Etching Machine

  • Aluminium PCB FR4 Etching Machine
  • Model Number: GE-JM650W
  • Working size: W650mm*L (L= length is not limited)
  • Et'ching area length: 1000mm
  • Outsize: 2850*1280*1200mm
  • Machine process: Load → Etching → water washing → squeeze→ Unload
  • Aluminium PCB FR4 Etching Machine for double-sided or single side Aluminium PCB and FR4 /LED or thin copper etching uses with high precision.

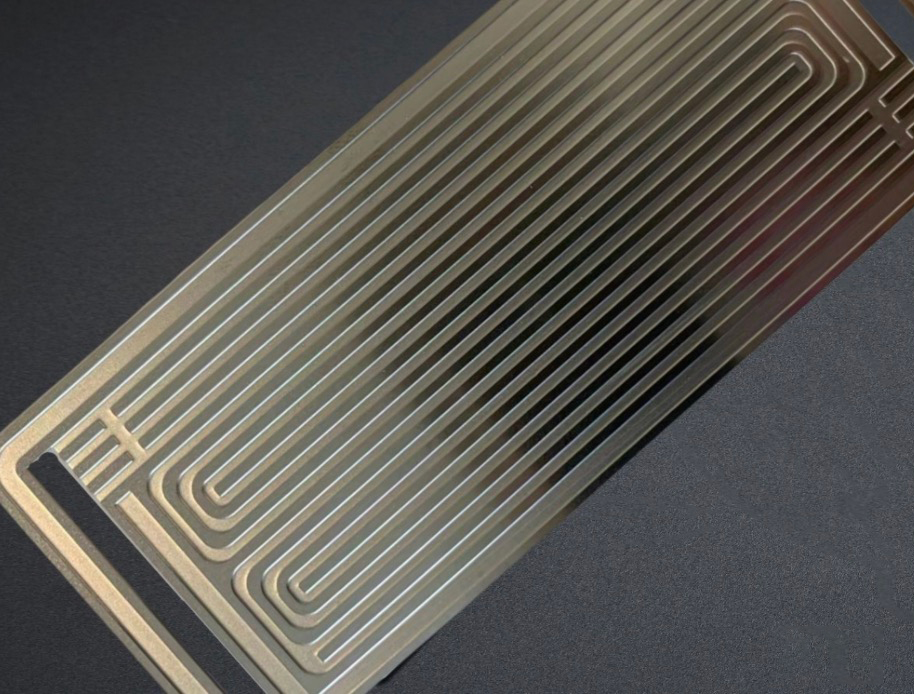

Dual Chamber high precsion etching machine

Dual Chamber precsion etching machine

  • Dual Chamber high precision etching machine
  • Model Number: GE-JM650
  • Working size: W650mm*L (L= length is not limited)
  • Etching area length: 2000mm
  • Outsize: 3850*1580*1680mm
  • Machine process: Load → Etching → squeeze → Unload
  • This Dual Chamber high precsion etching machine Can be chemical milling TV shadow masks, Grids, shims, Washers, sieves, meshes, SMT, choppers, encoder, disks and so on.
Dual Chamber high precsion etching machine

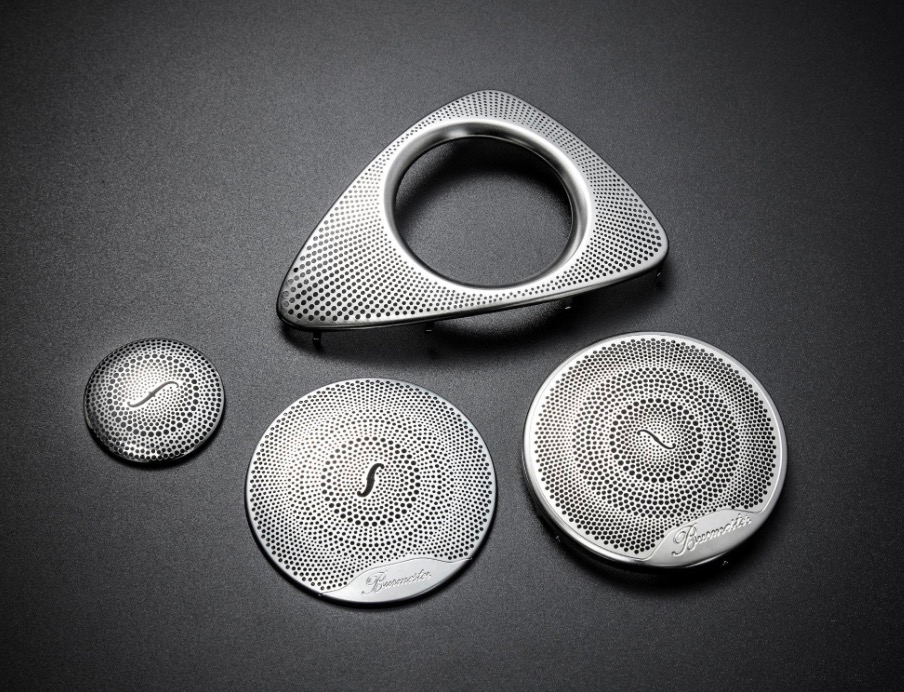

photo engraving machine for brass...

  • photo engraving machine for stainless steel/brass/aluminium/steel
  • Model Number: GE-JM650-w
  • Working size: W650mm*L (L= length is not limited)
  • Etching area length: 2000mm
  • Outsize: 3850*1580*1680mm
  • Machine process: Load → Etching → squeeze → Unload
  • This photo engraving machine Can be chemical milling TV shadow masks, Grids, shims, Washers, sieves, meshes, SMT, choppers, encoder, disks and so on.

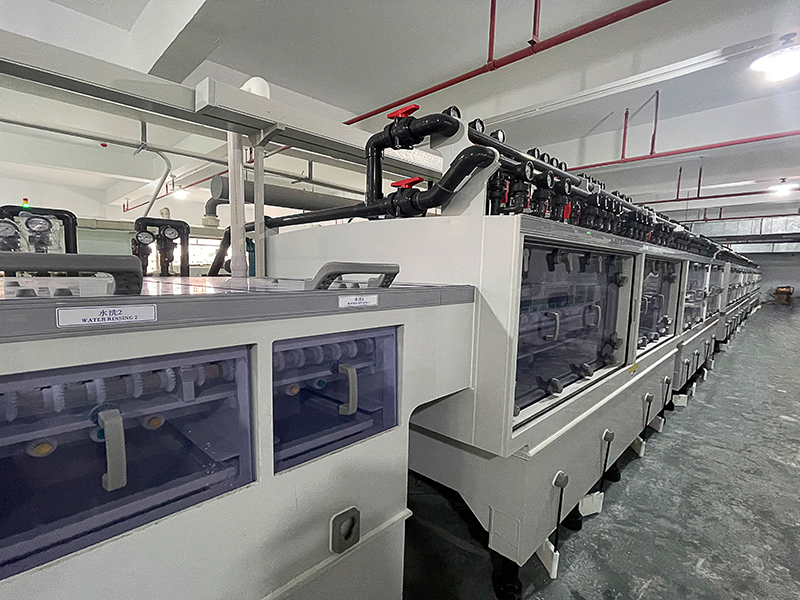

Ferric Etching Machine PhotoChemical Milling

Ferric Etching Machine

  • Ferric Etching Machine PhotoChemical Milling
  • Model Number: GE-SK9
  • Working size: W650mm*L (L= length is not limited)
  • Etching area length: 2000mm
  • Outsize: 4550*1580*1680mm
  • Machine process: Load → Etching → water washing→squeeze → Unload
  • The Ferric Etching Machine can be configured to do ferric chloride etching, as well as cupric chloride etching,used for photochemical milling filter meshes, seives, screens and grilles.

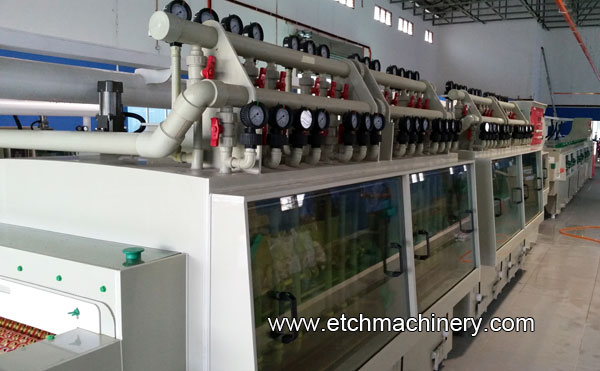

PCB alkaline etching machine

PCB alkaline etching machine

  • PCB alkaline etching machine
  • Model: GE-AE650
  • Working size: W650mm*L (L= length is not limited)
  • Machine process:Load → Ammonia etching →Regeneration System → pressure water washing → Squeeze→ Cold & Hot Dry → Unload
  • Machine dimension :8000*1700*1850mm
  • PCB alkaline etching machine for double-sided pcb machine or multi layer PCB or thin copper etching uses with high precision.This machine is chemical etching equipment use ammonia.
