PCB Production Line · Machine #31

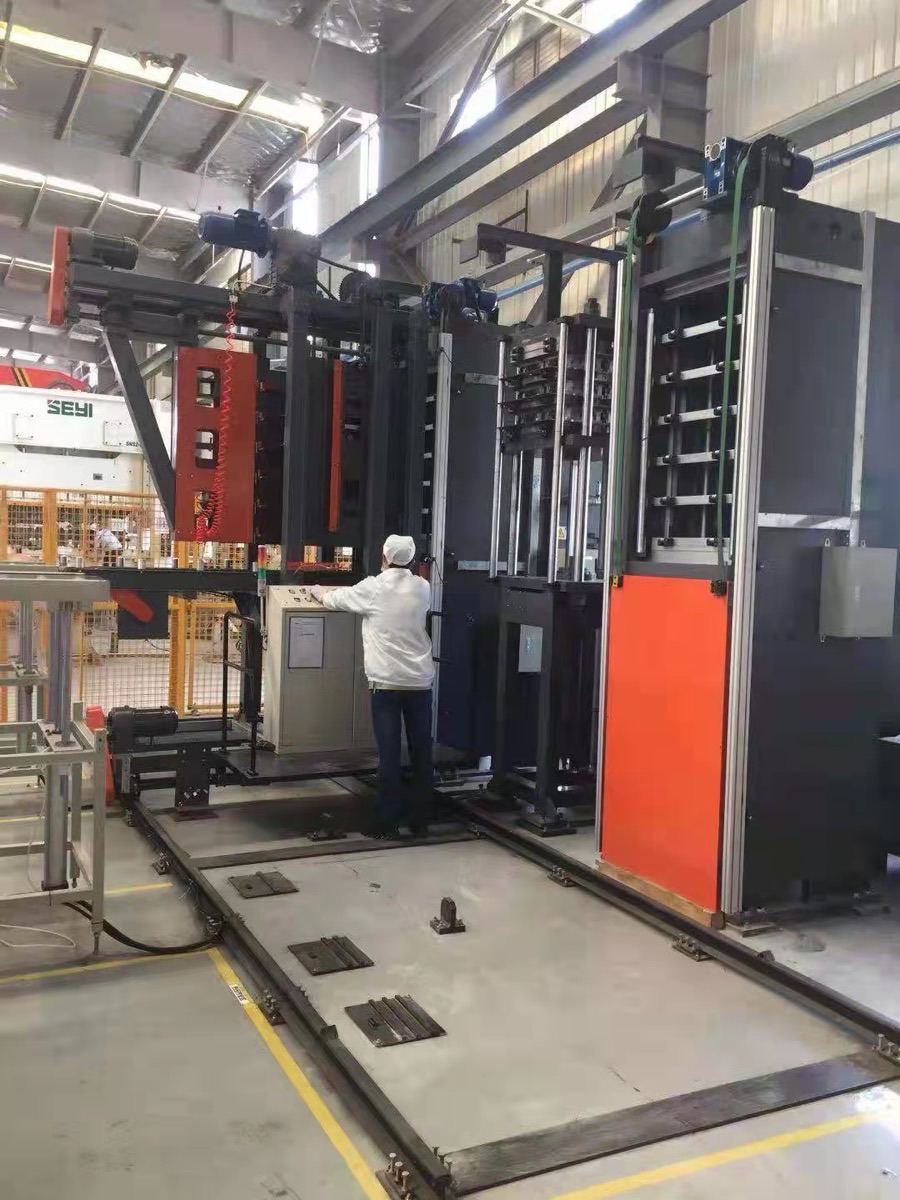

Vacuum Laminating Press Machine
Model: VLP-150
Multi-layer PCB lamination under vacuum — 4-layer hot/cold press with carrier plates.
Request a quoteTechnical Parameters
| Configuration | 4 layers / 1 H+C + 1 cold press |
|---|---|
| Press area | 22" × 26" × 4 OPEN |
| Heating | Electrical thermo-oil heating unit |
| Cooling | Cooling control system |
| Control | Multi-step temperature & pressure, PLC |
| Includes | Carrier & cover plates × 8, software, on-site install |
This is a parameter-overview page. A more detailed product page with full specifications, optional configurations, and process recommendations is being prepared. In the meantime, please contact our engineers for the full datasheet and pricing.
