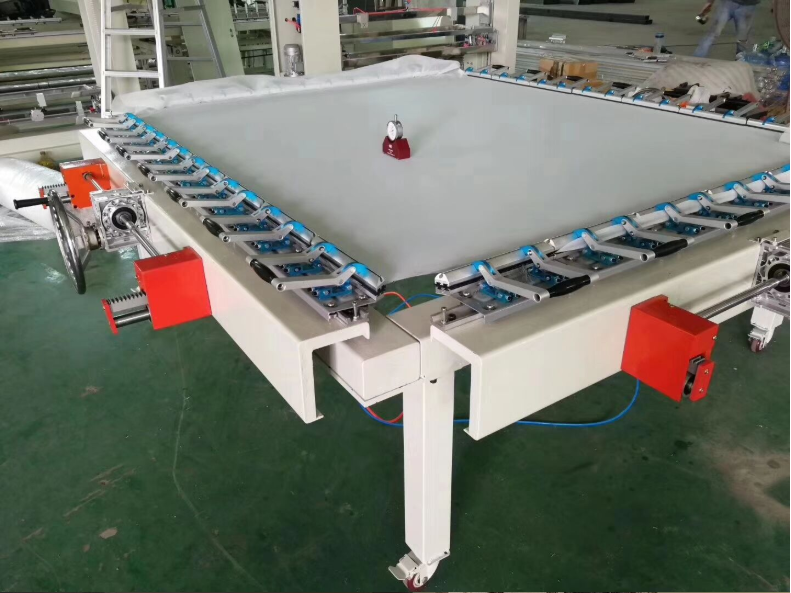

Screen Stretching Machine (GE-SC1200) — key technical parameters and specifications. Stretches and pre-tensions silk screens for solder-mask and legend printing.
Model: GE-SC1200
Stretches and pre-tensions silk screens for solder-mask and legend printing.
Request a quote| Max drawing area | 1200 × 1500 mm |
|---|---|
| Max tension | >30 N/cm |
| Footprint | 1500 × 1200 × 850 mm |
| Packing | L1900 × W600 × H400 mm |
| Power | 0.3 kW / 220 V |
| Air pressure | 0.4 MPa |
This is a parameter-overview page. A more detailed product page with full specifications, optional configurations, and process recommendations is being prepared. In the meantime, please contact our engineers for the full datasheet and pricing.
After screen printing of solder mask or legend ink, the panel moves to UV exposure and then chemical development. See the PCB developing machine (GE-D650W / GE-XY650) for sodium-carbonate spray development with ±0.02 mm tolerance.
