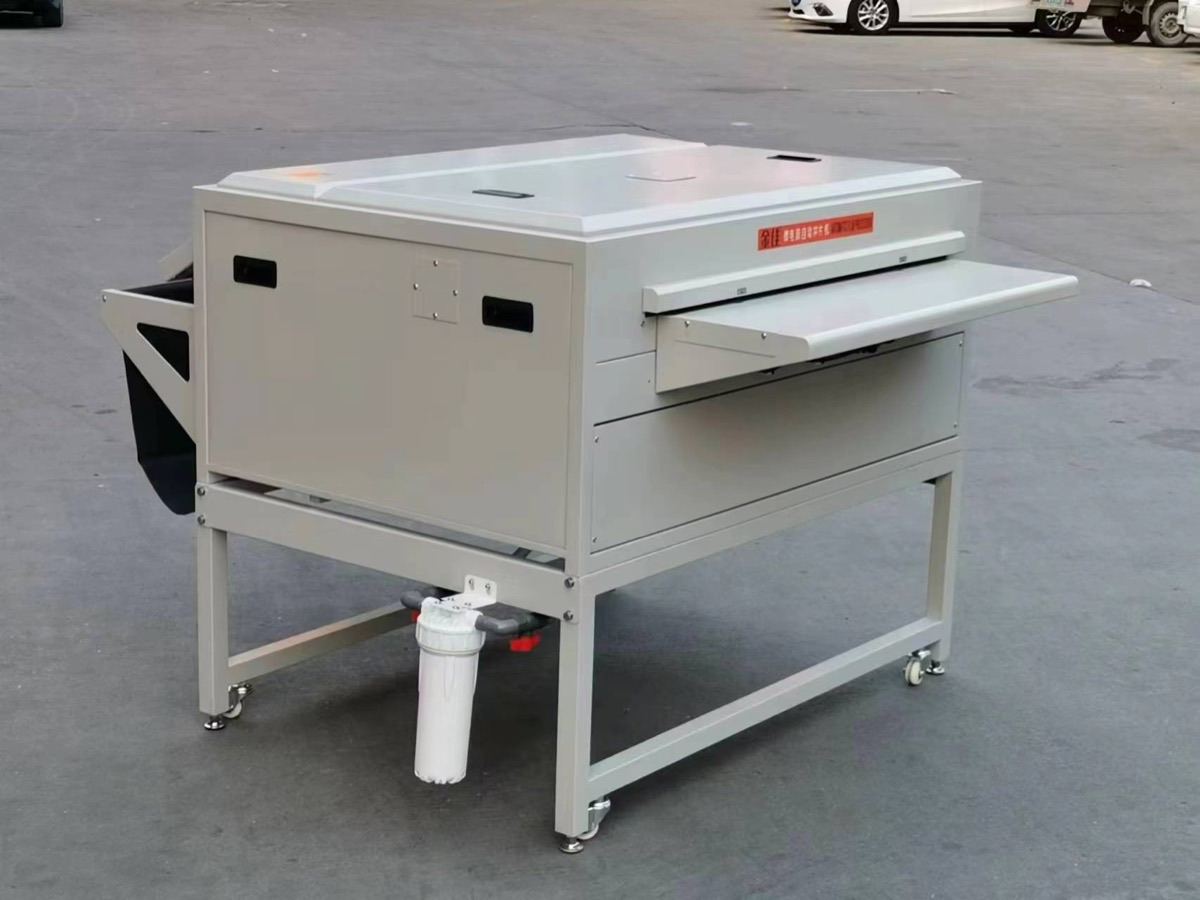

Film Printing Machine (JC-280B) — key technical parameters and specifications. Film processor / developer — develops, fixes, washes, and dries photoplotter film.
Model: JC-280B
Film processor / developer — develops, fixes, washes, and dries photoplotter film.
Request a quote| Footprint | 1.75 × 1.08 × 1.04 m (L×W×H) |
|---|---|
| Power | 220 V ± 10% / 30 A / 50 Hz / 1-phase |
| Tank volume | Developing, fixing, washing — 20 L each |
| Speed | 10 mm/s (30 s develop) → ~24" film in 1 min |
| Temp control | ±0.5 °C |
| Filter | 5 µm circulation filter |
This is a parameter-overview page. A more detailed product page with full specifications, optional configurations, and process recommendations is being prepared. In the meantime, please contact our engineers for the full datasheet and pricing.
After film printing and UV exposure, the next step is chemical development — see our PCB developing machine (GE-D650W) for sodium-carbonate conveyor spray development of dry-film or liquid photoresist, with integrated rinse and optional drying. ±0.02 mm tolerance, 650 mm conveyor width.
