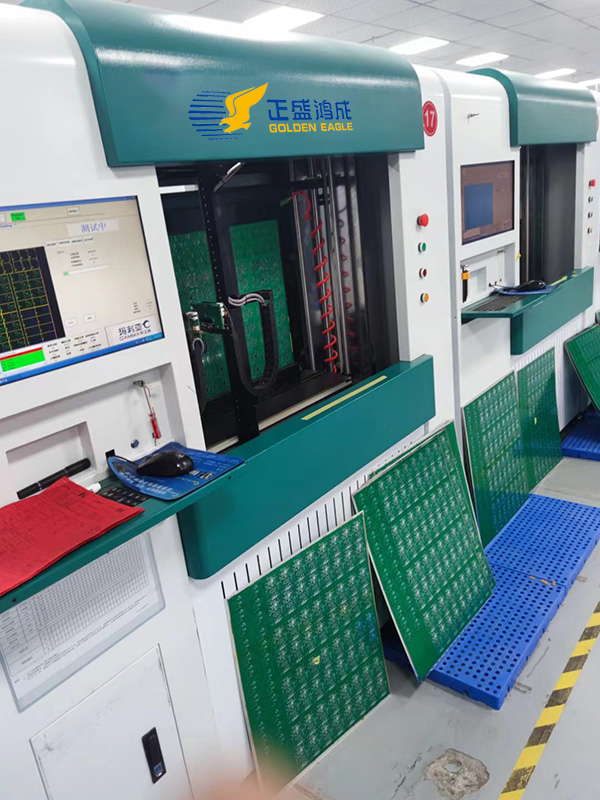

High Speed PCB Flying Probe Tester


High Speed PCB Flying Probe Tester

High Speed PCB Flying Probe Tester working video

Features: PCB Flying probe testing machine is a method of conducting high-voltage insulation and low resistance conductivity tests on circuit boards using 4, 6, or 8 probes, without the need for testing fixtures. It is very suitable for testing small batch samples

Contact Us Regarding Product

high speed PCB Flying probe testing machine Main technical parameter:
Model:GE-M-P80
Maximum test area:610mm*510mm/760mm*760mm
Minimum test area:25mm*25mm
Maximum thickness:6mm
Minimum thickness:0.3mm
Clamp method: upper and lower pneumatic clamps
Positioning Resolution:±15um
positioning accuracy:±15um
Minimum pad size:BALL SCREW type 75um/0.075mm ;Belt Type:100um/0.1mm
Minimum pad distance:BALL SCREW type 75um/0.075mm ;Belt Type:100um/0.1mm
Testing speed:BALL SCREW type 1800~2500 testing points/min ; Belt Type 1500~2100 testing points/min
Number of test probes: 2 front + 2 rear
Needle test pressure:5g~10g
operating system:UCAM Windows 2000/xp
Input date format:IPC/MET
Air requirement:Vacuum system
Repair station: faultstation3
CCD camera:1 front +1 rear
Test voltage:30v-500v optional 1000v
Test current:30mA-200mA
continuity Test:3Ω-280Ω
isolation test:5MΩ-250MΩ
Hiram testing scope:0.1pF—10mF
printer/monitor:outside connecting/1~LCD
Enviroment:Temerature 15~30°C /humidity 30%-70%(20°C)
Electrical power:220V/50-60HZ /8A
Dimension:1800W*2000H*850L (MM)
WEIGHT:1500KGS
