Press Plate Etching Equipment Solution
4-machine line for embossing press plates — used in packaging, textile, woodworking, and automotive interior trim.
Production Process Flow
From raw material to finished part — the complete 4-step production line for press plate.
1
Screen Printing
Print acid resist
2
Exposure
Cure the printed pattern
3
Drying
Cure before etching
4
Etching
Form recessed texture
Complete Equipment List
Every machine on the production line, with its function and link to the product page.
| # | Machine | Function on this line | |
|---|---|---|---|
| 01 | Flatbed Screen Printing Machine | Print acid-resist pattern | |
| 02 | Large Size Vacuum Exposure Machine | Cure resist on large plates | |
| 03 | Conveyor Drying Line | Cure printed plates | |
| 04 | Press Plate Etching Machine | Etch the textured pattern |
Key Production Parameters
What to specify when requesting a quote for this production line.
MaterialStainless steel 1 – 3 mm
Max plateUp to 1.0 × 1.5 m
Texture depth0.1 – 1.5 mm
SurfaceMatte / polished
Throughput20 – 100 plates / shift
Operators2 – 3 per shift
Floor space~80 m²
Best forPackaging, textile, wood, auto trim
Sample Products
Examples of parts made on a typical press plate line.
Large plate etcher
Decorative sheet

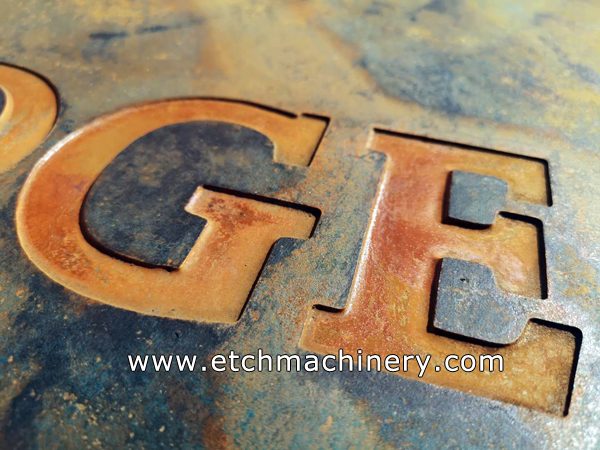

Depth-etched steel
