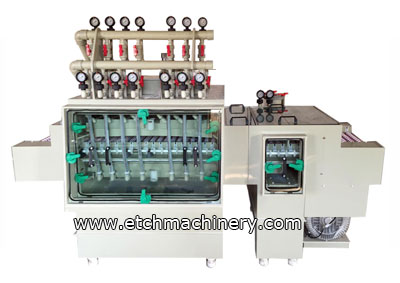

solder mask Stripping Machine with rinsing and drying


solder mask Stripping Machine with rinsing and drying

Features: solder mask Stripping Machine with rinsing and drying used for PCB and other metal plate solder mask Stripping and cleaning,auto chemical spray cleaning Machine

Contact Us Regarding Product

Process flow: Load → developing → →washing →Unload

Main technical parameter:

Model:GE-SRD650
Power: 3KW/380V
Working size: 400*L mm(L= length is not limited)
working height:720±10mm;
Stripping area length: 500mm
Washing area lenght:200mm
Working Temp.: 38~65℃
Tolerance: 0.05mm
Etching type: PLT sprayer
Transfer type: PLT wheel
Outsize:1250*1100*1200mm (mm)
weight: 300kgs
Control System:
Speed Adjust system
Pressure Adjust System
Temperature control System(both Heater and cooler)
Network Filter System
High temperature (up to 100) resist PP material
Long time Etching Ability

This machine with high precision oscilation system 。

solder mask Stripping Machine,PCB Stripping Machine,film Stripping Machine
