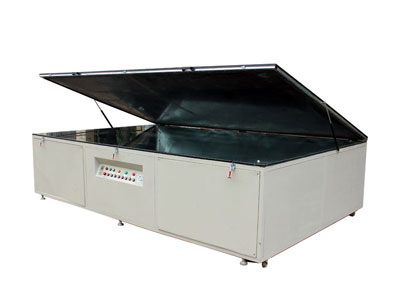

Large size Screen Printing Plate Vacuum Exposure Machine


Large size Screen Printing Plate Vacuum Exposure Machine

Features:Large size Screen Printing Plate Vacuum Exposure Machine Exposure area is 1500*3000mm ,non-standard product can be tailor-made by your requirements . Large size UV Exposure Machine

Contact Us Regarding Product

Function:

1.Electric shutter control system, advanced touch type man-machine interface control mode is more convenient and quickly. Simultaneously provides the more perfect product management system to get more precision and good exposure effection.

2.Iodine gallium light, 2KW/unit and 8 pcs for air-cooling system.

3.The position of the exposing lamp can be freely adjusted in accordance to the printing frame sizes.

4.The machine is made of SST.

5.Timely service, one year warranty, life-long maintenance

6.Provide free training for customers in any places.

7.Non-standard sizes can be customized according to different business requirements

Main technical parameter:
Model number: B48
Exposure size: 1500*3000mm
Appearance:1600*3200*1200mm
Power: 380V/50HZ
Lamp: Iodine gallium light(2KW,8 SETS)
Tolerance: 0.05mm
Exposure type: Single side
Cooling system: Air-cooling system
Control Systems:
Automatic Exposure times Control System
Automatic Flash Control System
Vacuum Pressure System
Air Cooling System

  • Offset Plate UV Exposure Machine
  • Model Number:GE-B2
  • Working size: 800*1000mm
  • Outsize: 1100*1100*1200mm
  • Vacuum Pressure System
  • Windy Cooling System
  • This Offset Plate Exposure Machine have electric shutter control system to operate conveniently and quickly; Wind cooling system to working continue and long times;
  • Double Side UV Exposure Machine
  • Model Number:GE-B650
  • Working size: 650*850mm
  • Outsize: 2200*1430*1750mm
  • Vacuum Pressure System
  • Windy Cooling System
  • This machine is suitable for double-sided exposure of metal plate, metal crafts, etching and cutting process.
  • Double side UV LED dry film Exposure machine for PCB making
  • Model: GE-UV700
  • Exposure area: 1060*700mm
  • Resolution:50um
  • Dimension(L*W*H):2700*1630*1750mm
  • This Double sides UV LED dry film Exposure machine is an ideal equipment for making PCB. This machine is specialized in the mass production of various kinds of dry film, wet film, inner layer and outer layer.
  • Large size Screen Printing Plate Vacuum Exposure Machine
  • Model: GE-B48
  • Exposure area: 1500*3000mm
  • Exposure type: Single side
  • Dimension(L*W*H):1600*3200*1200mm
  • Large size Screen Printing Plate Vacuum Exposure Machine Exposure area is 1500*3000mm ,non-standard product can be tailor-made by your requirements.The position of the exposing lamp can be freely adjusted in accordance to the printing frame sizes.
