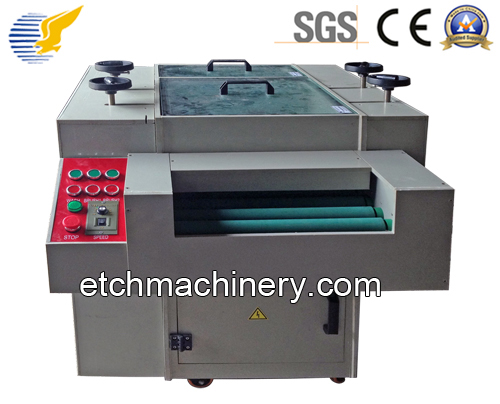

  • Small PCB Cleaning Brushing machine
  • Model Number:GE-B100
  • Work width:400mm
  • process thickness:0.5-6mm
  • out size:750×680×550 mm
  • Working process:Loading-brushing(2 rollers)-washing-blot up-unloading
  • The small PCB brushing washing machine can do Brushing, cleaning and sucking on the PCB surface treatment and used to remove the PCB surface oil and oxide layer.
  • small PCB Scrubbing Finishing Machine
  • Model: GE-B400
  • process thickness:0.5-6mm
  • out size:1250×800×850 mm
  • Working process:Loading-brushing(2 rollers)-washing-drying-unloading
  • This machine is commonly used in aluminum, SST, copper and other thin metal materials as well as copper clad laminate, resin plate,Composite panels and etc. It is often used in the double-sided plate making process, tin-plated copper ,printing ink pretreatment process.
  • 650mm Brushing Grinding Machine
  • Model: GE-BR650
  • Working Width:650mm
  • Min / Max board size:120*80mm / 500*500mm
  • Brush Size:240# 500# Grind System:Oscillate system
  • Process flow: Load → Double-sided brushing → water Washing → Unload
  • This PCB Brushing machine can remove the oxide and dust of PCB with high speed and efficacy. And it can save more power and water advance for it rationalization structure.
  • PCB Grinding Brushing Machine
  • Model: GE-GB650
  • Working Width:650mm
  • Min / Max board size:120*80mm / 500*500mm
  • Process flow: Load →high pressure washing→Double-sided brushing → water Washing → drying→Unload
  • This PCB Grinding Brushing Machine Used to remove defects from NC drilling while cleaning the holes of debris.
  • Double Side PCB Deburring Machine
  • Model: GE-GBD650
  • Working Width:650mm
  • Min / Max board size:120*80mm / 500*500mm
  • Process flow: Load →Acid rinse→water washing→Double-sided brushing → high pressure water Washing → drying→Unload
  • This Double Side PCB Deburring Machine Used to remove defects from NC drilling while cleaning the holes of debris.
  • SST car gaskets clean drying machine
  • Model: GE-GBC650
  • Working Width:650mm
  • Min / Max board size:120*80mm / 500*500mm
  • Process flow: Load →high pressure washing→Double-sided brushing → water Washing → drying→Unload
  • This production line is for stainless steel car Cylinder gasket,Remove oil from both sides, wash and dry.
