Small film Stripping Machine for PCB

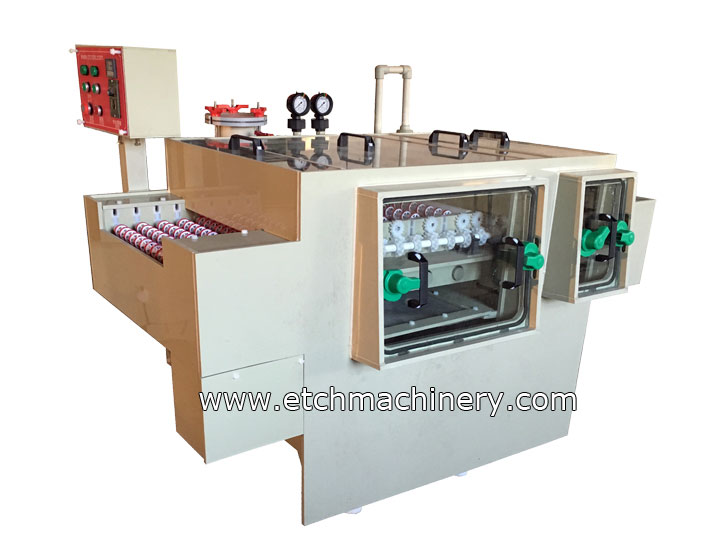

Small film stripping Machine for PCB

Features:PCB stripping Machine is used for remove PCB photoresist film . double side spray cleaning with high temperture ,and water washing process cleaning. Small film stripping Machine for PCB

Contact Us Regarding Product

Process flow: Load → Stripping → →washing →Unload

Main technical parameter:

Model:GE-S400S
Power: 3KW/380V
Working size: 400*L mm(L= length is not limited)
working height:720±10mm;
stripping area length: 500mm
Washing area lenght:200mm
Working Temp.: 38~65℃
Tolerance: 0.05mm
Etching type: PLT sprayer
Transfer type: PLT wheel
Outsize:1250*1100*1200mm (mm)
weight: 300kgs
Control System:
Speed Adjust system
Pressure Adjust System
Temperature control System(both Heater and cooler)
Network Filter System
High temperature (up to 100) resist PP material
Long time Etching Ability

PCB stripping MACHINE, Small film stripping Machine

Video link: https://www.youtube.com/watch?v=2SYvz875dQs
