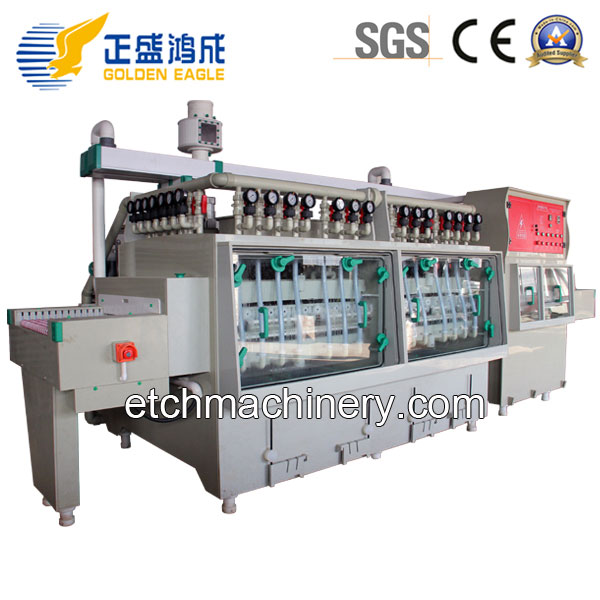

Ferric Etching Machine PhotoChemical Milling


Ferric Etching Machine PhotoChemical Milling

Features: The Ferric Etching Machine can be configured to do ferric chloride etching, as well as cupric chloride etching,It could used for manufacture metal meshes with photochemical milling, including filter meshes, seives, screens and grilles.

Contact Us Regarding Product

Process flow: Load → Etching1,2 → Etching3,4 → Pressure Washing → City Water Washing→squeeze → Unload

Main technical parameter:
Model:GE-SK9
Power:380V/50HZ/60HZ
Working width:650mm
Working height:850mm (+/50mm adjust)
Min / Max board size:120*80mm / 500*500mm
Etching system:Double Spray with Oscillate system
Workpiece thickness:0.2~3.2mm
Working Temperature:35~55 ℃
Conveyor Speed:0.5~6m/min
Heater/Cooling Pipe :Titanium Pipe
Machine dimension :4500*1700*1850mm
Automatic Control System:
Working Speed Adjust system
Pressure Adjust System
Temperature control System
High temperature (up to 100) resists German PP material

Ferric Etching Machine, PhotoChemical Milling Equipment

Product Image Details


etching machine
Transport Conveyor with Wheels, Rollers

pressure control
pressure control

 oscilation system
oscilation system

High temperature (up to 100) resist German PP material

Integrated inline filter with O-ring seal sample ports and easy pump maintenance
Pressure gauge & pump
