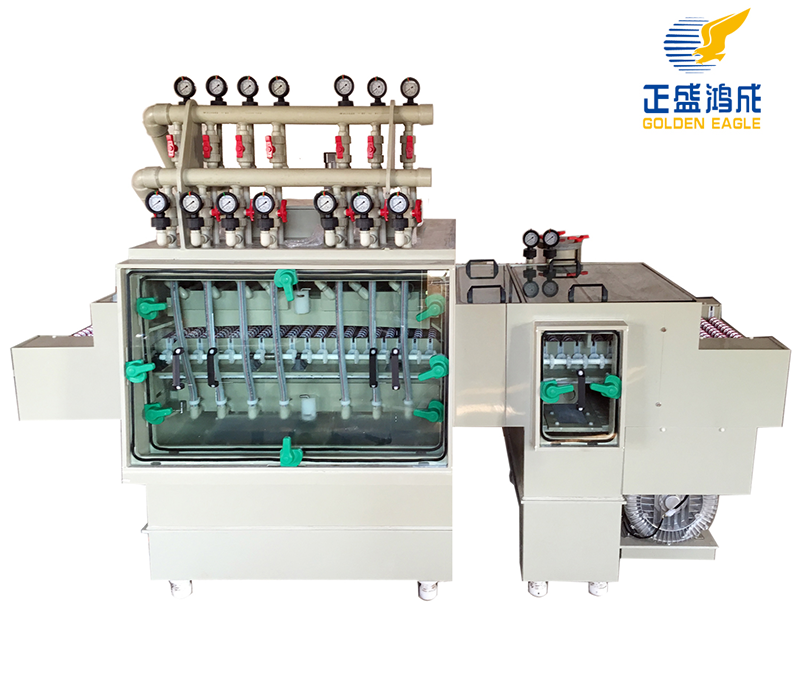

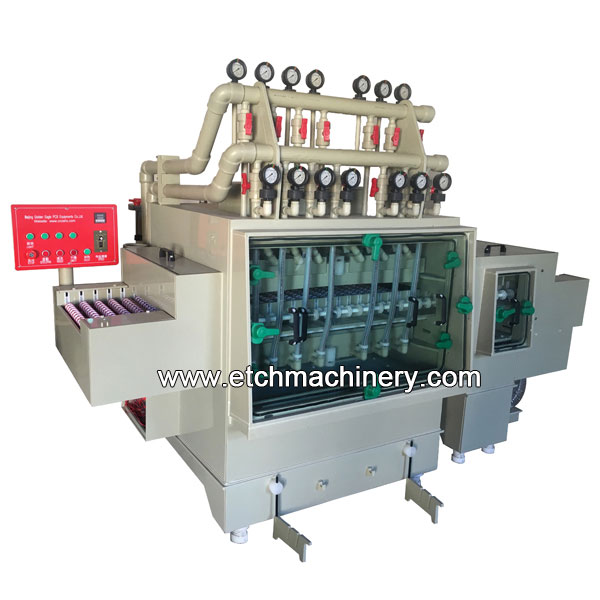

Aluminium PCB FR4 Etching Machine


Aluminium PCB FR4 Etching Machine

Features: Aluminium PCB FR4 Etching Machine for double-sided or multi layer PCB or thin copper etching uses with high precision.

Contact Us Regarding Product

Process flow: Load → Etching1 → Pressure Washing → City Water Washing→blot up → Unload

Main technical parameter:
Model:GE-JM650
Power:380V/50HZ
Working width:650mm
Working height:850mm (+/50mm adjust)
Min / Max board size:120*80mm / 500*500mm
Etching system:Double Spray with Oscillate system
Workpiece thickness:0.2~3.2mm
Working Temperature:35~55 ℃
Conveyor Speed:0.5~6m/min
Heater/Cooling Pipe :Titanium Pipe
Machine dimension :2500*1700*1850mm
Automatic Control System:
Working Speed Adjust system
Pressure Adjust System
Temperature control System
High temperature (up to 100) resists German PP material

Product Image Details


pressure control
pressure control

 oscilation system
oscilation system

water rinsing
water rinsing

Integrated inline filter with O-ring seal sample ports and easy pump maintenance
Pressure gauge & pump
